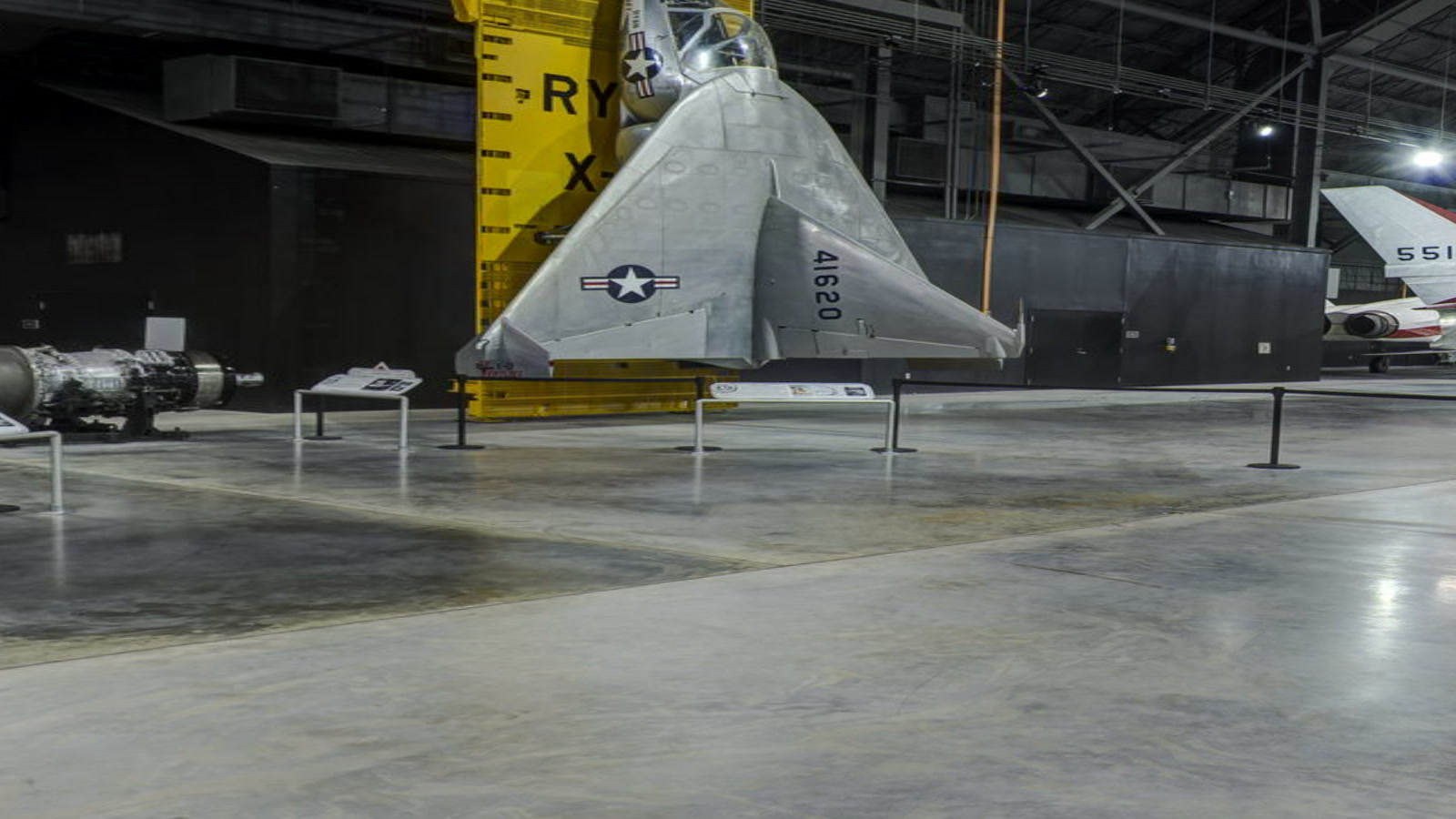

X-13 Vertijet
The X-13 proved that a jet could take off vertically, transition to horizontal flight, and return to a vertical landing platform. The Ryan X-13 stood on its tail for takeoff. A pilot used thrust for vertical lift, small control jets for low-speed attitude control, and conventional aerodynamic surfaces after transitioning into forward flight. For landing, the aircraft returned to a vertical attitude and caught a cable suspended from a mobile platform.
In depth
The story behind the display
In April 1957, the X-13 demonstrated the complete sequence from vertical takeoff through conventional flight to vertical landing. The concept proved technically possible, but the demanding pilot workload, limited payload, and specialized support equipment restricted its operational value.
Details that tell the story
Two X-13 experimental aircraft were built · Completed a full vertical-to-horizontal-to-vertical flight in April 1957 · Used a nose hook to capture a landing cable · Program ended in 1958 after proving the concept
Keeping people alive beyond the atmosphere
A crewed spacecraft carries a small, controlled environment into a place that cannot support unprotected human life. Pressure, temperature, oxygen, carbon dioxide removal, water, electrical power, and waste management all become engineering responsibilities. The flight suit or capsule displayed in a museum is therefore part of a larger life-support system, not simply clothing or a vehicle body.
Early missions established capabilities in stages. Launch and recovery, orbital flight, longer duration, maneuvering, rendezvous, and work outside a spacecraft each introduced different demands. Ground controllers, tracking stations, medical teams, recovery forces, and manufacturers supported the crew. A successful mission depended on that network as much as on the people visible in the cabin.
Artifacts preserve evidence of those demands at a human scale. A small hatch suggests the difficulty of entering or leaving in bulky equipment. A glove makes clear that pressure protection can restrict dexterity. The shape of a returning capsule reveals the importance of managing atmospheric heating and deceleration. Connections to high-altitude aviation are especially strong: pressure suits, research aircraft, and instrumented test flights helped build knowledge that spacecraft designers could use. The history is a sequence of carefully developed capabilities, with extraordinary journeys resting on many ordinary systems that had to keep working together.
