McCook Field Wind Tunnel
At McCook Field, wind-tunnel research moved aerodynamic testing from a small workshop apparatus into a continuing military research program. McCook Field illustrates the institutionalization of aeronautical research. Knowledge production now depended on budgets, facilities, standardized methods, and long-term programs.
In depth
History & service
This wind tunnel was designed and built at McCook Field, Ohio, in 1918. Using a 24-blade fan of 60 inches diameter, the tunnel developed a maximum air speed of 453 mph at its 14-inch diameter choke-throat test area.
It was used for calibrating airspeed instruments and testing airfoils. The item to be evaluated was placed in the choke-throat and viewed through the glass door. During operation, the air was drawn into the small end of the tunnel and exhausted from the large end where the fan was located.
Details that tell the story
McCook Field became an Army engineering center after World War I · Wind tunnels allowed controlled aerodynamic comparison · Laboratory results were checked against flight tests · Institutional research connected engineers, instruments, pilots, and manufacturers
Invention at the workbench
Early aviation grew out of a world of bicycle shops, engine builders, instrument makers, and skilled woodworkers. The materials were familiar; the operating conditions were new. A fitting that worked on the ground might loosen under vibration. An engine that produced enough power might still be too heavy. A wing covering had to stay taut without adding more weight than the structure could carry.
Small workshops could move quickly because the designer, builder, and test operator were often the same person. A disappointing trial could lead directly to a changed bracket, a different propeller, or a revised control linkage. But workshop ingenuity alone did not make an airplane dependable. Drawings, measurements, interchangeable parts, and repeatable inspections became increasingly important as production expanded beyond a few hand-built machines.

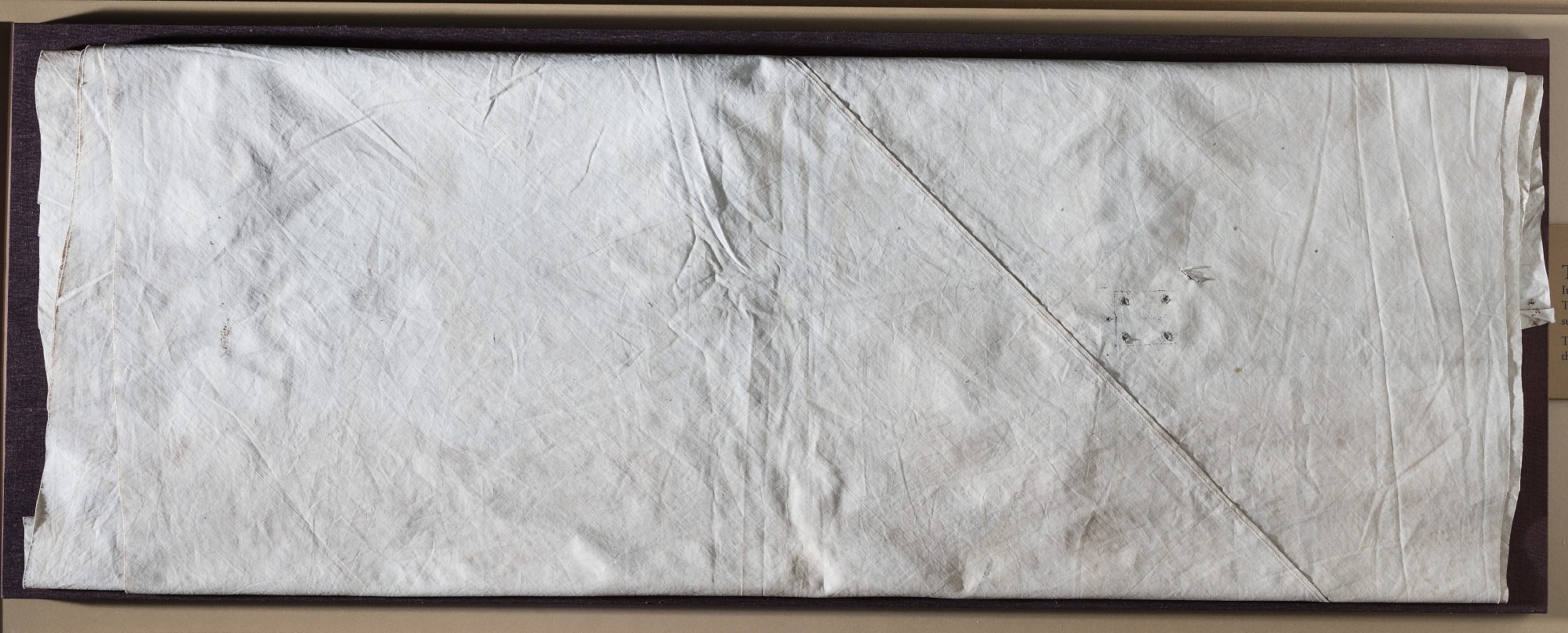

The surviving components make that transition visible. An exposed chain drive reveals how power was transmitted. A casting shows the limits and possibilities of the foundry. A fabric seam records how a large lifting surface was assembled from small pieces of material. Engines displayed far from their aircraft are especially revealing: what looks like an isolated mechanical object was part of a carefully balanced arrangement of fuel, cooling, structure, and pilot workload. Moving between collections brings those separated pieces back into the same story.
