J58 Turbojet

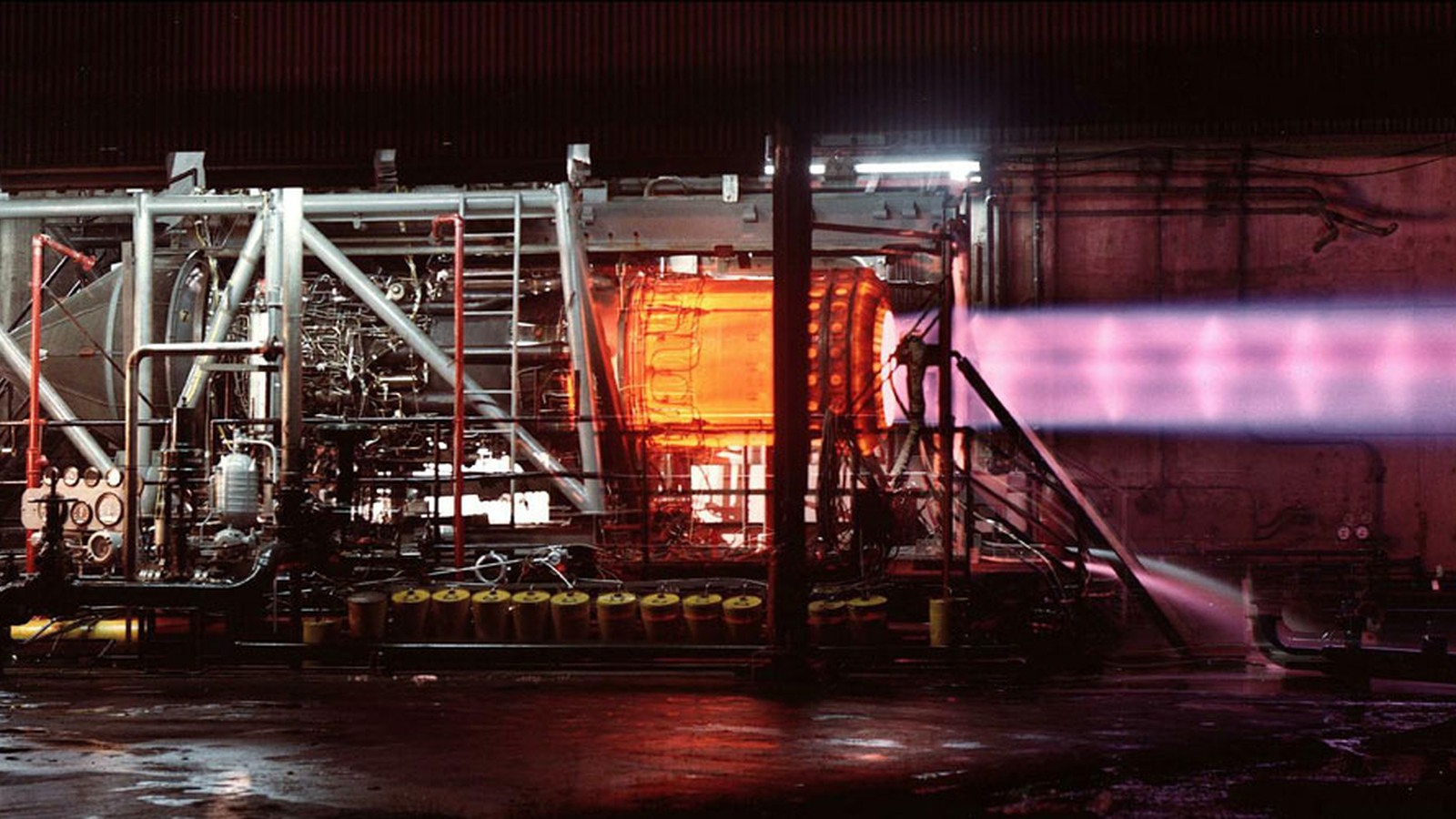

The Pratt & Whitney J58 enabled the SR-71 to cruise above Mach 3 for extended periods. At extreme speed, inlet airflow, afterburner operation, fuel, lubricants, and materials had to function as one integrated propulsion system. Much of the aircraft’s thrust at cruise came from carefully managed airflow around the engine core.
In depth
History & service
The J58 engine was developed in the late 1950s by Pratt & Whitney Aircraft Division of United Aircraft Corp. to meet a U.S. Navy requirement. It was designed to operate at speeds of Mach 3+ and at altitudes of more than 80,000 feet. The J58 was the first engine designed to operate for extended periods using its afterburner, and it was the first engine to be flight-qualified at Mach 3 for the U.S. Air Force.
Two J58s powered the highly-sophisticated Lockheed SR-71 high-altitude strategic reconnaissance aircraft as well as its forerunners, the Lockheed A-12 and YF-12A prototype interceptor. In July 1976, J58 engines powered an SR-71 to a world altitude record of 85,069 feet and another SR-71 to a world speed record of 2,193 mph.
Details that tell the story
Powered the A-12, YF-12, and SR-71 families · Designed for sustained flight above Mach 3 · Worked as part of an integrated inlet-engine system
The revolution inside the engine
A jet engine takes in air, compresses it, adds fuel, and uses the resulting hot gas to produce thrust. A turbine extracts enough energy from that gas to keep the compressor turning. The arrangement sounds straightforward, but the machinery lives in a difficult combination of heat, centrifugal force, pressure, and vibration. Early practical jets depended on advances in materials and manufacturing as much as on the basic idea.
The first generation offered great promise at high speed, but fuel consumption, engine life, and throttle response limited what aircraft could do with it. The transition did not immediately make propellers obsolete. Piston aircraft and turboprops remained effective where low-speed efficiency, endurance, or operating cost mattered more than maximum speed. Aircraft were built around missions, and different missions rewarded different engines.
Later turbofans moved a large quantity of air around the hot core, improving efficiency and changing the economics of airline travel. Military engines often accepted different compromises for acceleration, compact size, or supersonic performance. A display of engines therefore contains several parallel histories: the race for speed, the effort to carry more people at lower cost, and the persistent search for machinery that crews could trust. Cross-gallery comparisons reveal why engines that look broadly similar can represent very different priorities.
