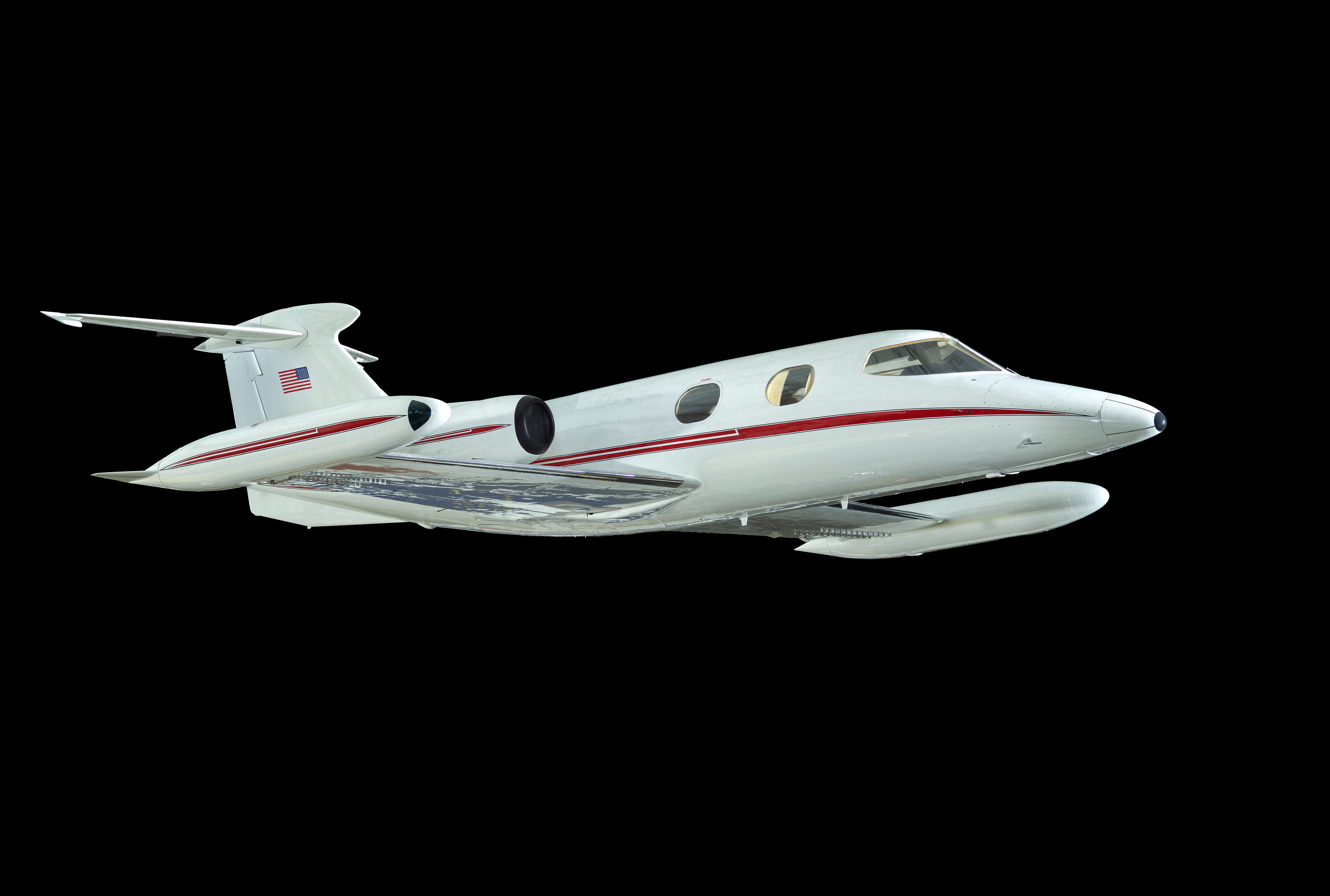

Lear Jet 23
The Lear Jet 23 brought compact jet transportation to business flying. This second prototype flew hundreds of test flights before later Learjets entered service. The aircraft accumulated 1,127 hours and 864 flights as a test platform. Engineers and pilots used repeated flights to evaluate performance, handling, systems, maintenance, and reliability.
In depth
Testing converts a prototype into a product
The Learjet connected executive travel, airport networks, corporate decision-making, and a new market for high-performance personal transport. Its value depended on time saved as well as flight performance.
The revolution inside the engine
A jet engine takes in air, compresses it, adds fuel, and uses the resulting hot gas to produce thrust. A turbine extracts enough energy from that gas to keep the compressor turning. The arrangement sounds straightforward, but the machinery lives in a difficult combination of heat, centrifugal force, pressure, and vibration. Early practical jets depended on advances in materials and manufacturing as much as on the basic idea.
The first generation offered great promise at high speed, but fuel consumption, engine life, and throttle response limited what aircraft could do with it. The transition did not immediately make propellers obsolete. Piston aircraft and turboprops remained effective where low-speed efficiency, endurance, or operating cost mattered more than maximum speed. Aircraft were built around missions, and different missions rewarded different engines.
Later turbofans moved a large quantity of air around the hot core, improving efficiency and changing the economics of airline travel. Military engines often accepted different compromises for acceleration, compact size, or supersonic performance. A display of engines therefore contains several parallel histories: the race for speed, the effort to carry more people at lower cost, and the persistent search for machinery that crews could trust. Cross-gallery comparisons reveal why engines that look broadly similar can represent very different priorities.
