Secure Connect Compute Power Cool Recover

The energy question

Every digital action has a physical path.

A data center turns electrical power into computation, movement of data, and heat. Its engineering problem is not merely to supply electricity, but to deliver clean, continuous power while removing heat and preparing for failures.

Figures describe different geographies and time periods. Projections depend on demand, hardware, utilization, cooling, grid conditions, and future efficiency.

The immersive route

Follow the system, not just the hallway.

Each panorama is a piece of a larger machine. Choose a chapter or move sequentially from the public edge of the facility to the infrastructure that keeps servers online.

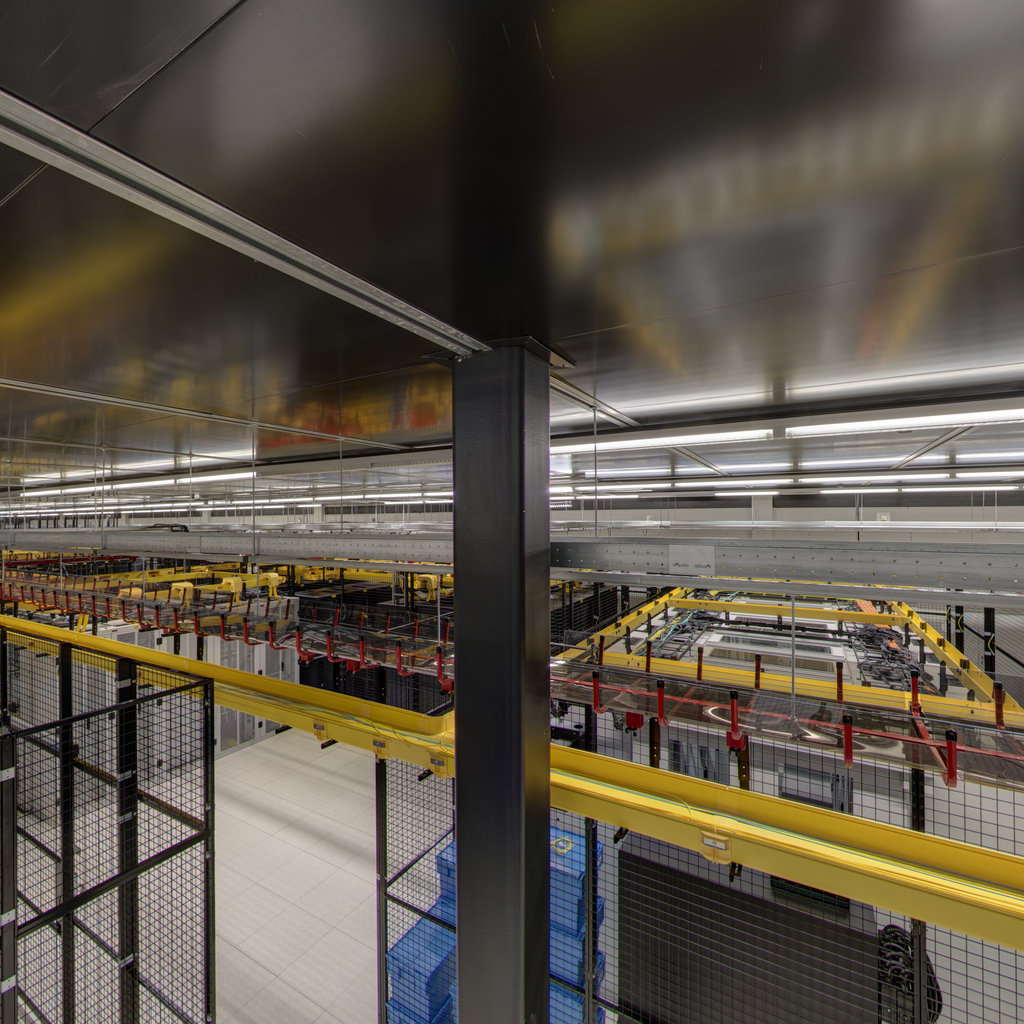

01 Facility Exterior

Drag to look · scroll or pinch to zoom

Access & trust

Facility Exterior

Why it matters

Look for

    Engineering question

    Authoritative source

    Trace the power path

    Availability is designed as a chain.

    Servers cannot wait for the grid to recover. Multiple layers bridge the time between a disturbance and a stable alternate source.

    1. 01 Utility service

      Electricity enters through site switchgear and transformers.

    2. 02 UPS conditioning

      Power electronics regulate the supply and isolate brief disturbances.

    3. 03 Battery bridge

      Stored energy carries the critical load while generators start and stabilize.

    4. 04 Generator backup

      On-site generation supports continued operation during a longer utility outage.

    5. 05 Distribution to racks

      Switchboards and power distribution units deliver monitored circuits to IT equipment.

    A compact reliability vocabulary

    How much spare capacity is enough?

    Redundancy descriptions identify how many components a design needs and how many additional paths or units are available when something is removed for maintenance or fails.

    N

    Exactly the capacity required for the design load.

    N+1

    Required capacity plus one additional component.

    2N

    Two independent full-capacity systems or distribution paths.

    Labels alone do not prove reliability. Maintenance strategy, component independence, controls, fuel, testing, and human response determine whether redundancy works when it is needed.

    The whole facility

    Six interdependent systems.

    Failure in one domain can quickly propagate into another. Systems engineering asks how the parts interact, not merely whether each component works by itself.

    01

    IT load

    Servers compute, storage retains data, and network equipment moves it. Nearly all electrical energy used by IT equipment ultimately becomes heat.

    02

    Connectivity

    Diverse fiber routes, patching, switching, and cable management connect the facility to users, cloud regions, carriers, and other data centers.

    03

    Electrical

    Switchgear, UPS modules, batteries, generators, and distribution equipment form a continuous path from source to rack.

    04

    Thermal

    Airflow management, pumps, chillers, heat exchangers, and outdoor heat rejection keep components within operating limits.

    05

    Protection

    Layered access, surveillance, early smoke detection, zoning, and suppression protect people, equipment, and continuity.

    06

    Operations

    Technicians monitor alarms, plan capacity, maintain equipment, manage change, receive hardware, and respond when automation reaches its limits.

    Measure the overhead

    PUE connects the servers to the building.

    Power Usage Effectiveness compares all facility energy with the portion delivered to IT equipment. A value closer to 1 means less additional energy is being used by cooling, power conversion, lighting, and other supporting infrastructure.

    Total facility energyIT equipment energy= PUE

    DOE Best Practices Guide for Energy-Efficient Data Center Design

    Try the relationship

    1.60 PUE

    For each 1.00 kW serving IT equipment, 0.60 kW supports the facility.

    This simplified instantaneous example teaches the ratio. Formal reporting uses carefully defined measurement boundaries and annual energy.

    Field record

    Build a systems explanation.

    Use evidence from the panoramas to explain how the facility maintains availability while balancing energy, water, security, cost, and maintainability.

    Notes stay on this device unless you print or clear them.

    Source desk

    Continue with authoritative material.

    Energy demand 2024 United States Data Center Energy Usage Report Lawrence Berkeley National Laboratory Global outlook Key Questions on Energy and AI International Energy Agency Engineering practice Best Practices Guide for Energy-Efficient Data Center Design U.S. Department of Energy Power distribution PDUs, monitoring, distribution loss, and PUE ENERGY STAR

    The panoramas document multiple older data-center environments. They are presented as a generic systems field study, not as a representation of one current facility or operator. Equipment and practices vary by site and continue to evolve.
